The 6.6kW solar system is Australia's most popular residential system size. It provides a strong balance of generation capacity and affordability for households using 15 to 25 kWh of electricity per day, making it suitable for most two to four-person homes with moderate electricity consumption.
This guide explains what a 6.6kW system includes, how much electricity it generates in practice, who it suits, how it pairs with a battery, and when you should consider stepping up to a larger system.
What Is a 6.6kW Solar System?
A 6.6kW system consists of approximately 15 to 18 solar panels (depending on the wattage of each panel) and a solar inverter, installed on your roof and connected to your switchboard. The "6.6kW" refers to the total rated output of the panels under standard test conditions.
Using current N-type panels rated at 420 to 440 watts each, a 6.6kW system typically requires 15 to 16 panels. Older or lower-wattage panels may require 17 or 18 panels for the same total capacity.
The system is paired with a 5kW inverter, which is the maximum single-phase inverter size permitted for grid export in most Australian electricity distributor areas. The reason for the 6.6kW panel / 5kW inverter pairing is explained below.

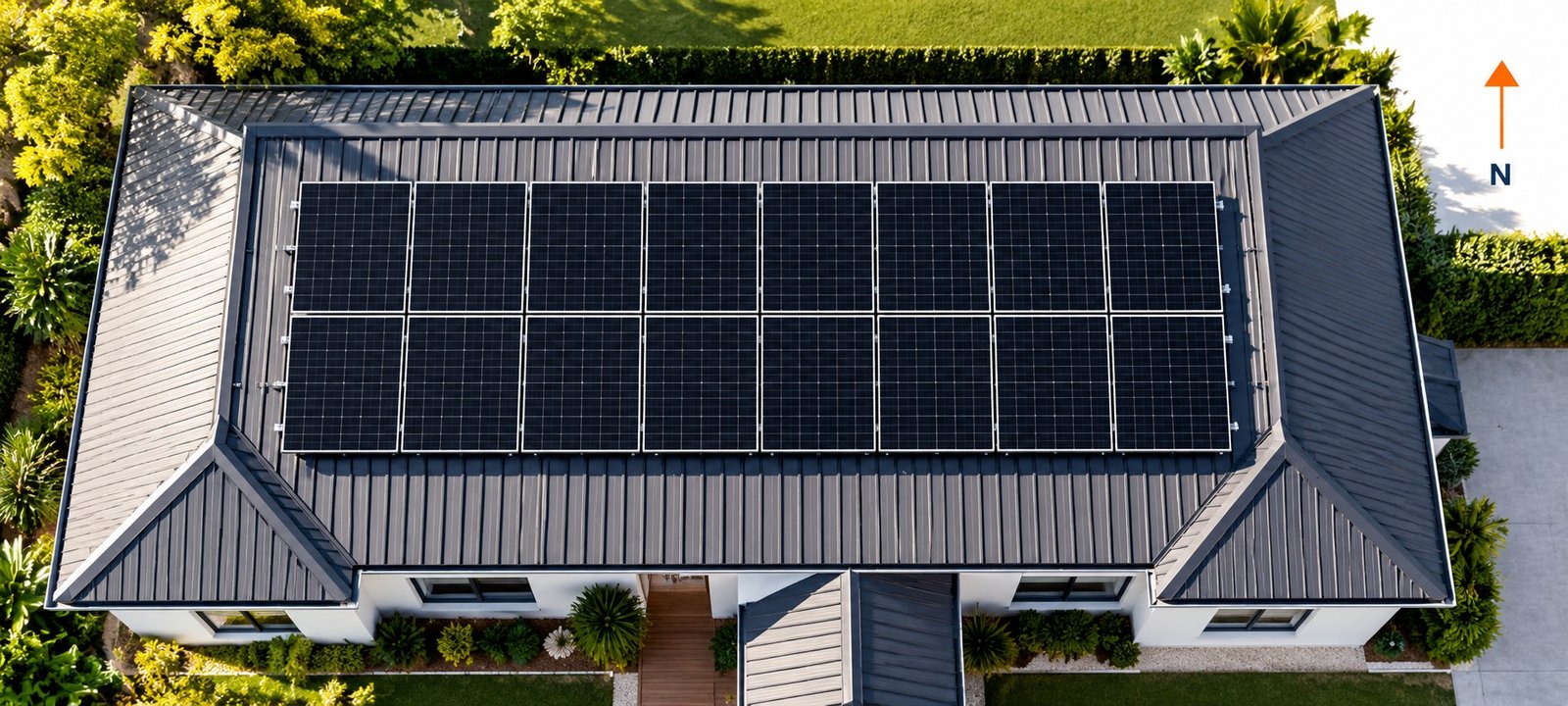

Roof space required. Each panel occupies approximately 1.8 to 2 square metres. A 16-panel system requires around 30 to 32 square metres of suitable roof area. This does not need to be a single contiguous area. Panels can be split across two or more roof sections if needed, though a single north-facing section is ideal.

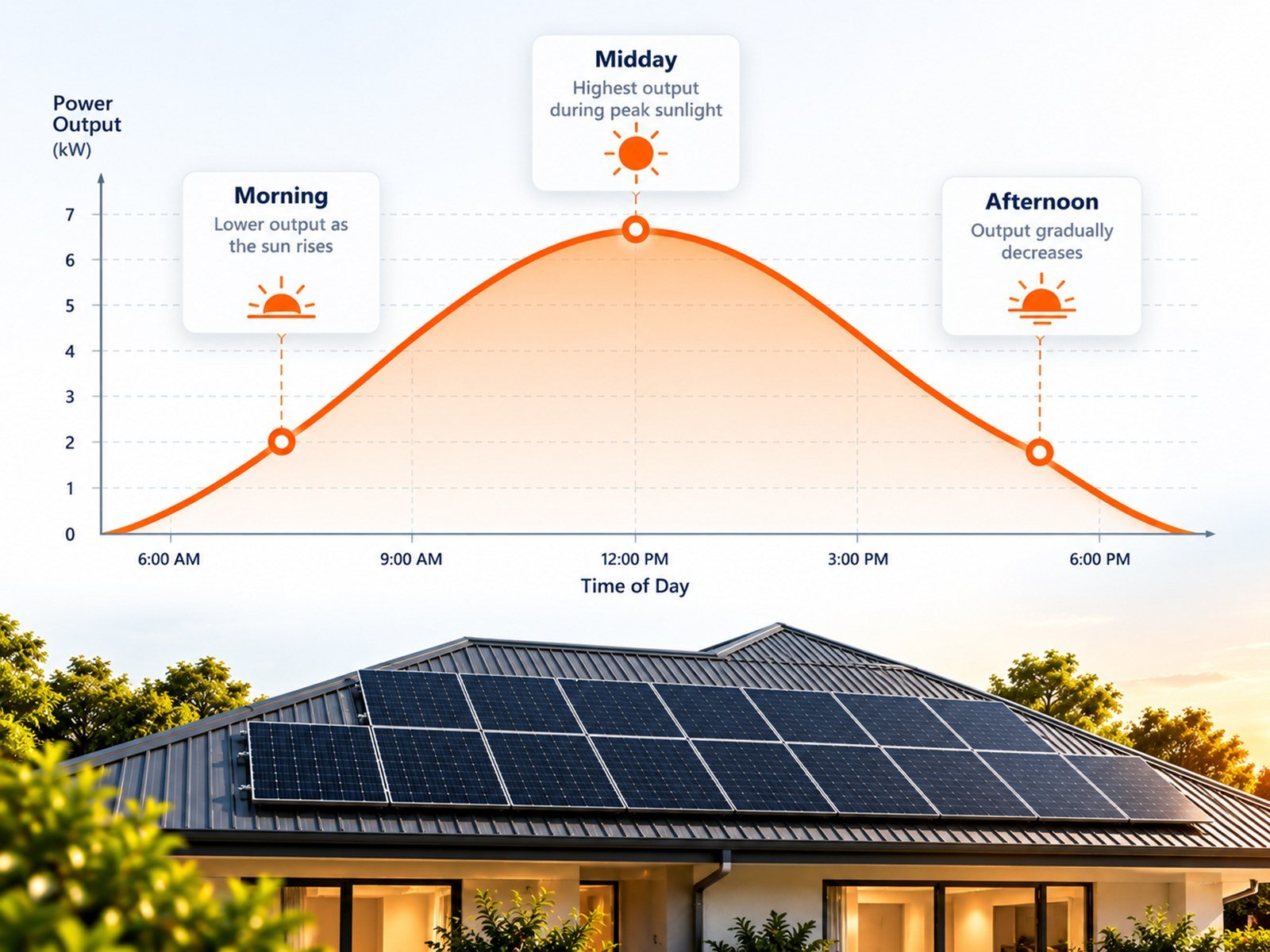

A 6.6kW solar system in Australia generates between 20 and 30 kWh per day on average, depending on your location, roof orientation, shading, and the time of year.
Location matters.
A system in Brisbane or Perth generates more electricity across the year than the same system in Melbourne or Hobart, because those cities receive more average daily solar irradiance.
Summer vs winter.
Daily generation is roughly 40 to 50 per cent higher in summer than in winter. A system producing 30 kWh per day in January may produce 17 to 20 kWh per day in June. This seasonal variation is normal and should be factored into your expectations.
Roof orientation.
A north-facing roof produces the most total energy. An east-west split array produces a broader generation curve across the day (less peak but more morning and afternoon generation), which can improve self-consumption for households that use electricity in the morning and evening.
Typical annual generation.
A well-sited 6.6kW system in an Australian capital city generates approximately 8,000 to 10,500 kWh per year. Your installer's design should include an estimated annual output based on your specific roof orientation and location.
Is 6.6kW Enough for Your Home?
A 6.6kW system is well suited to households that use 15 to 25 kWh of electricity per day. To put this in context, the average Australian household uses approximately 16 to 20 kWh per day, so a 6.6kW system covers the full daily consumption of a typical home on most days.
This system size works well if you:
Have a two to four-person household with moderate electricity consumption.
Run standard appliances (fridge, washing machine, dishwasher, split-system air conditioning, cooking) without unusually high usage patterns.
Have some daytime electricity usage, whether because someone is home during the day or because you time appliances (washing machine, dishwasher, pool pump) to run during sunlight hours.
Have a single-phase electrical connection and do not plan to upgrade to three-phase.
This system size may not be enough if you:
Use more than 25 kWh per day consistently.
Have ducted air conditioning that runs for extended hours.
Run a pool pump and heating system.
Charge an electric vehicle daily.
Plan to switch from gas to all-electric cooking, heating, and hot water.
Have a large household of five or more people.
If your daily usage exceeds 25 kWh, a 10kW or 13kW system will generate more electricity and provide better self-consumption, especially if you are adding a battery.
Most Australian electricity distributors limit single-phase solar exports to 5kW. This means the inverter (which controls how much power is sent to the grid) is capped at 5kW. However, solar panels rarely produce their full rated output simultaneously because real-world conditions (temperature, cloud, angle of sunlight) reduce output below the laboratory-rated maximum.
Panel array6.6kW
Inverter5kW
Panel-to-inverter ratio1.33:1
By installing 6.6kW of panels with a 5kW inverter, the system generates closer to the inverter's full capacity for more hours of the day. Without oversizing the panels, a 5kW inverter would be underutilised for most of the day, producing significantly less than its capacity.
This 1.33:1 panel-to-inverter ratio is standard practice in Australia, approved by all major inverter manufacturers, and does not void warranties. The inverter manages any excess by clipping output to 5kW during the brief periods when panel output exceeds inverter capacity, which typically only occurs for a short window around solar noon on the clearest days.
The result is a system that generates more total energy across the day than a 5kW panel / 5kW inverter combination, at minimal additional cost.
Adding a Battery to a 6.6kW System

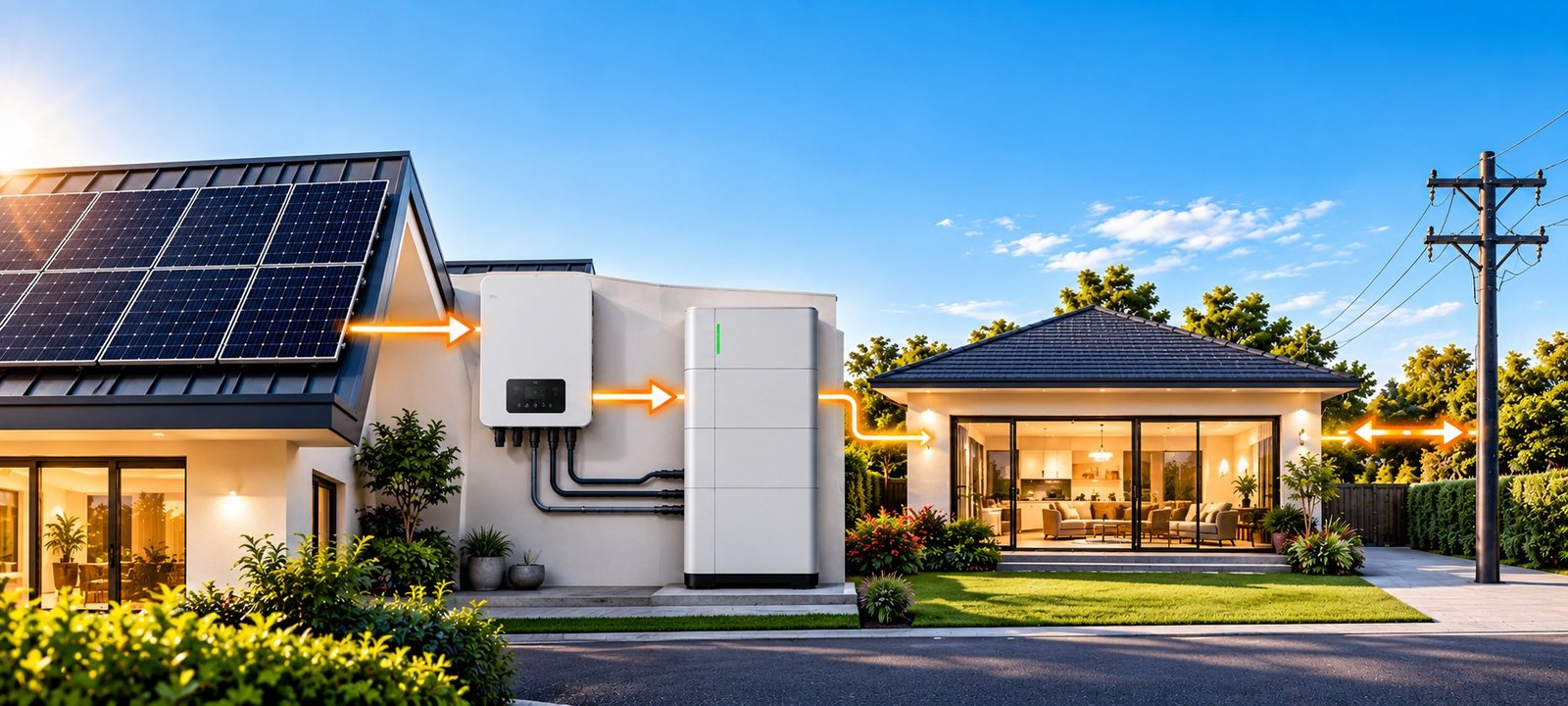

A battery stores excess solar electricity generated during the day so you can use it in the evening and overnight instead of buying from the grid. Without a battery, any solar electricity your home does not use immediately is exported to the grid at your feed-in tariff (typically 3 to 10 cents per kWh). With a battery, that same energy is stored and used later, offsetting grid purchases at 30 to 45 cents per kWh.
What battery size suits a 6.6kW system?
For most households with a 6.6kW solar system, a 10kWh battery is a strong starting point. It stores enough energy to cover typical evening and overnight consumption for a two to four-person household.
If your evening usage is higher than average (air conditioning, EV charging, or a large household), a 14kWh battery provides more headroom. If your budget is limited, a 5kWh battery provides partial coverage and can often be expanded later if you choose a modular system.
Inverter considerations. If you are installing solar and a battery at the same time, your installer will recommend a hybrid inverter that manages both solar and battery. If you are adding a battery to an existing 6.6kW system that has a standard string inverter, you will need either a hybrid inverter upgrade or an AC-coupled battery. Discuss this with your installer during the design phase.
The federal Cheaper Home Batteries Program provides around a 30% discount on eligible batteries from 5kWh to 100kWh.
A 6.6kW system is the right choice for many Australian homes, but it is not the right choice for every home. If your daily usage exceeds 25 kWh, you are switching from gas to electric, or you plan to charge an electric vehicle, a larger system will serve you better.
Rather than guessing, the comparison below shows how the three most common residential system sizes differ across the factors that matter most. Find the column that matches your household and you will have a clear starting point for your quote.
How the Three System Sizes Compare
Generation estimates assume capital city locations with north-facing or east-west split orientation. Actual output varies by location, roof angle, and shading. Panel counts based on 420 to 440W N-type panels.
Moderate-use homes, couples, small families on single-phase
Larger families, pool owners, homes switching from gas to electric
High-use homes, EV owners, all-electric households seeking near self-sufficiency
Scroll the table sideways to compare all three system sizes.
If your household sits in the 6.6kW column, this is almost certainly the right system size for you. If you fall between two columns, the larger system usually offers better long-term value because the incremental cost of additional panels is modest compared to the extra generation over 25 years.
If your situation clearly matches the 10kW or 13kW column, start with the guide for that system size:
Using current N-type panels rated at 420 to 440 watts, a 6.6kW system typically includes 15 to 16 panels. The exact number depends on the wattage of the specific panel model used. Higher-wattage panels mean fewer panels are needed, which can be advantageous on smaller roofs.
How much roof space do I need for 6.6kW?
Approximately 30 to 32 square metres of suitable roof area for 15 to 16 panels. The panels do not need to be on a single roof section. They can be split across two or more orientations, although performance is best when panels face north or are split east-west.
Can I expand a 6.6kW system later?
Expanding the panel array after installation is possible but involves additional design, permitting, and potentially a new inverter. If you think you may want more than 6.6kW in the future, it is often more cost-effective to install a larger system from the start or to install a hybrid inverter that can support a larger panel array when you upgrade.
Does a 6.6kW system work on a flat roof?
Yes. On a flat or low-pitch roof, panels are mounted on tilt frames angled to optimise generation. This adds slightly to the installation cost and may require more roof area (to avoid panels shading each other), but flat-roof installations are common and effective.
What happens to excess solar I do not use?
Excess electricity is exported to the grid. Your electricity retailer pays you a feed-in tariff for each kWh exported, typically between 3 and 10 cents depending on your retailer and plan. Alternatively, a battery stores the excess for evening use, which is more valuable because it offsets grid purchases at 30 to 45 cents per kWh.
Is 6.6kW the maximum for a single-phase home?
The 6.6kW panel array with a 5kW inverter is the standard configuration for single-phase homes. Some distributors allow larger inverters on single-phase with export limiting, but 5kW export is the most common approval. If you want a system larger than 6.6kW, discuss three-phase upgrade options or export-limiting configurations with your installer.
Is a 6.6kW System Right for Your Home?
The best way to find out is a site-specific assessment based on your roof, your energy usage, and your future plans. Request a free, no-obligation quote and we will recommend the right system size and configuration for your home.
